Hi, Hello Electronics Lovers today I bring some interesting news for Arduino lovers | Arduino Download. The wait is over finally, Proteus Software  Community launched Capacitive Touch Sensor Library for personal and business users. Now you can do a real-time simulation on  Proteus software by using Virtual Capacitive.


Step 1:  First of All Download Library Files ( A zip folder )

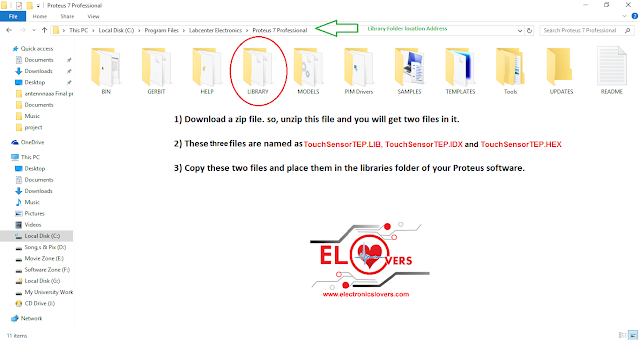

Step 2: Extract Zip Folder and Paste these three files named as TouchSensorTEP.LIB, TouchSensorTEP.IDX and TouchSensorTEP.HEX into Library folder of Proteus Software.

Step 3: If you are using Proteus 8 Software then Library folder will be within the data Folder (Proteus 8 ProfessionalDataLIBRARY ) OR ProgramData (C:ProgramDataLabcenter ElectronicsProteus 8 ProfessionalLIBRARY)

Step 4: Now open Proteus software and search for Touch sensor
How to add Capacitive Touch Sensor Library in to proteus 7 & 8

Step 5: How to Add Hex file into Capacitive Touch Sensor module so it,s easy Double click on Touch sensor module and then click on program File and Add your Hex file (You can find Hex file inside zip folder — TouchSensorTEP.HEX )

How to add Capacitive Touch Sensor Library in to proteus 7 & 8
Step 6Now it,s time to test and simulate the Touch sensor module in Proteus software. When you turn test pin logic into “1” it,s mean that your sensor is sensing the touch and when it’s LOW it means that there’s no touch.

Step 7: It,s time to Play With Touch sensor module in Proteus Enjoy ……..Love you All.
