In This Tutorial, i will Show You How to Make Arduino Mini pro Based Temperature Meter that allows you to measure temperature and Display the Maximum Minimum and Present Temperature on 4X20 LCD Module.

Material Needed:

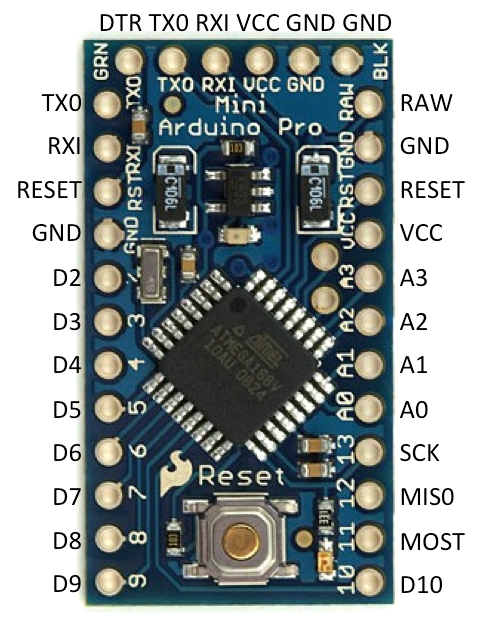

Arduino Mini Pro
LCD Module 4 x 20
Temperature Sensor (DS18B20)
Protoboard
22k resistor

5v Regulated Power Supply or 5v Battery or 9v Dc Battery with Voltage Regulated ic
First step is to Turn on Arduino Mini Board by Connecting 5v Dc power supply After this You Need To Connect The Sensor so there is a 3 wires coming out from DS18B20 Sensor Two of them is for Ground and Vcc and third wire is for input to Arduino so Connect the Third wire with Digital Pin No 4 of Arduino Mini Pro and connect 2.2K resistor to Vcc from Digital pin No 4 and it,s Done .
Now it,s time to Connect LCD with Arduino so it,s easy Connect the LCD-SDA To Arduino Pin No A4 and Connect LCD-SLC to Arduino Pin No A5.
It,s an Easy Project Do it Your Self ……Thanks, Electronics Lovers



Code:
Author Stonez Taken From http://stonez56.blogspot.tw/2015/03/weekend-project-Arduino-temperature.html
